This precision aluminum housing is a custom component concept for automation / electronics. The illustration demonstrates a possible part family; it is not a dimensioned production drawing or a stocked item.
Design and functional interfaces
Identify the mounting faces, bearing seats, sealing surfaces, datum scheme and mating components. Keep general dimensions separate from critical functional features. Specify thread standards and the condition in which dimensions are to be inspected.
Material and finishing
Candidate materials include aluminum 6061 / 7075. Select the exact grade against mechanical load, corrosion exposure, temperature and surface requirements. Finishing can change dimensions at fits and threads; indicate masking and coating allowances on the drawing.
Assembly concept

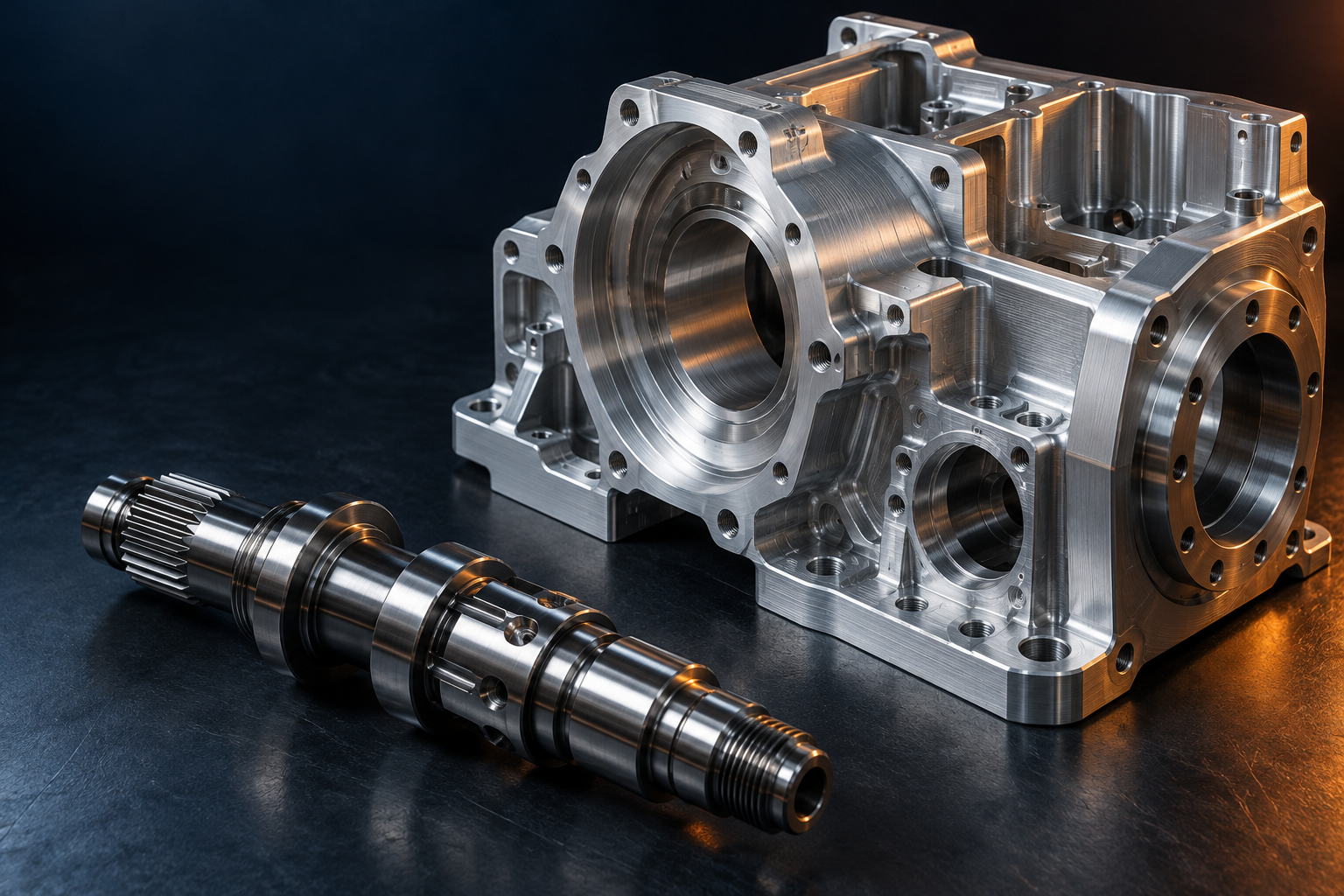

The exploded and disassembled views are AI-generated concept illustrations. They explain how machined housings, shafts, bushings and fasteners can work together. They must not be used as assembly instructions or engineering approval.
What to send for a quotation
- STEP model and PDF drawing, including revision.
- Prototype quantity and expected production volume.
- Material grade, finish and critical tolerances.
- Inspection documentation, packaging and destination.
